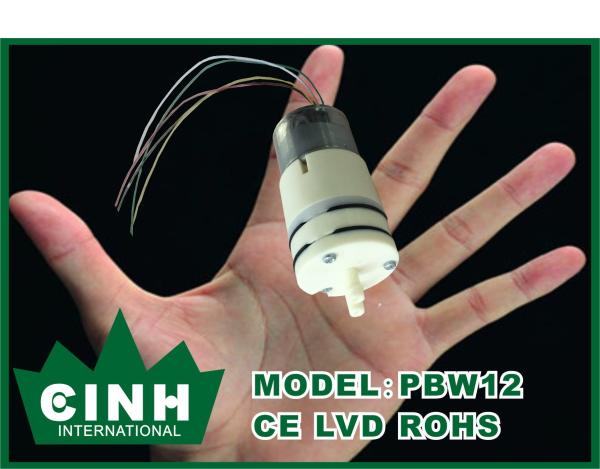

Super Quiet Brushless DC Pump 12V
Quick Detail:
Brushless DC Water Pump
1.Brushless motor, super long lifetime, super quiet
2. More than 320+_50mL/m for water flowrate, can work with water or wine or oil or ozonized water flowrate or Ammonia gas or liquid. Water suctionable height 2m.
3.Speed adjustable and controllable with square wave signal
4. Corrosive resistance advanced pump film, can carry chemical liquid.
5. lifetime more than 8000hours continuously working day and night
6. size is ∮27x59.7mm
7. Outlet & Inlet Dia: 4mm
8. weight: 60g
Description:
CINH Brushless DC Water Pump PBW12 use a DC brushless motor design that has the capability of over 80000 hours of continuous maintenance-free operation. It is compact, very quiet, highly reliable and inexpensive, it has the design ability to work for chemical liquid or chemical gas continuously operating day and night.
Features
> Compact size
> Steady air outputs with low noise
> Low power consumption
> Economical
> Very low vibration
Applications:
oil paint machine
syringe pump
ink machine
aquarium
Household appliance
Dosing chemical material
Battery driving pump
Wine pump
oil pump
ammonia pump
chemical liquid pump
chemical air/liquid pump
ozone pump
fragrance diffuser pump
vacuum pump for suck liquid or air
Specifications:
Model: PBW12
Type : Brushless DC Water Pump
Rated Voltage: DC12V, DC24V
Flowrate: 320+_50mL/m for water flowrate
Consumption current: 250mA
Water suctionable height 2m
Max pressure: more than 90 kPa
Coil insulation classfication: A type
Endurance time: more than 8000 hours
Operating noise: Less than 20dB
Starting voltage: 8V
Weight: 60g
Operating Environmental Temperature: 5-50.c
Operating Environmental Humidity: 0-90%RH
Performance Curve
Size
Competitive Advantage:
long lifetime, low noise, high quality, 320+_50mL/m for liquid flowrate and 90kpa pressure, with chemical resistance pump film, can carry any chemical liquid, RPM speed adjustable and controllable, energy saving suitable for battery driving, Brushless DC Water Pump
